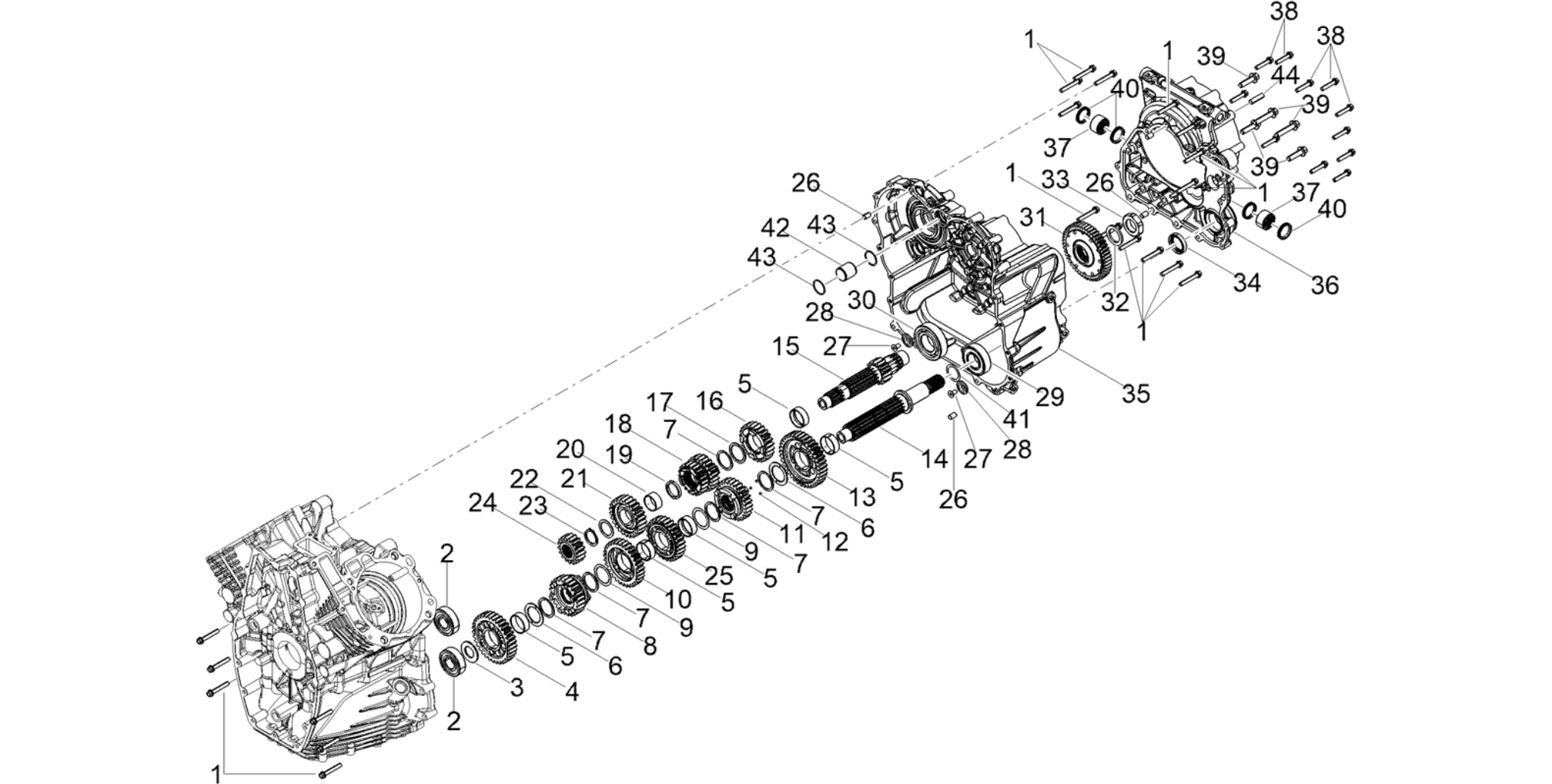

Moto Guzzi E5 ABS 2023-2024 (NAFTA) Gear box - Gear assembly

Gear box - Gear assembly
Skip to results list
Position
Part Name
Stock
Price
  • 1
    FLANGED HEXAGON SCREW

    FLANGED HEXAGON SCREW

    874550
    6 in stock
    £1.06
    0
  • 2
    BALL BEARING 20X47X14

    BALL BEARING 20X47X14

    2A001078R
    Back order
    £33.93
    0
  • 3
    THRUST WASHER

    THRUST WASHER

    2A001456
    Back order
    £3.39
    0
  • 4
    2ND SPEED GEAR ON TRANSMISSION SHAFT

    2ND SPEED GEAR ON TRANSMISSION SHAFT

    2A001486
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £49.95
    0
  • 4
    2ND SPEED GEAR ON TRANSMISSION SHAFT

    2ND SPEED GEAR ON TRANSMISSION SHAFT

    2A001353
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £48.78
    0
  • 5
    MOVEABLE BUSH

    MOVEABLE BUSH

    849308
    Back order
    £25.61
    0
  • 6
    CLEARANCE WASHER

    CLEARANCE WASHER

    849309
    Back order
    £2.60
    0
  • 7
    SHAFT SNAP RING

    SHAFT SNAP RING

    1A002604
    Back order
    £1.36
    0
  • 8
    6ND SPEED GEAR

    6ND SPEED GEAR

    2A001487
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £48.85
    0
  • 8
    GEAR 6A

    GEAR 6A

    2A001357
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £51.22
    0
  • 9
    CLEARANCE WASHER

    CLEARANCE WASHER

    849310
    3 in stock
    £5.08
    0
  • 10
    3RD SPEED GEAR

    3RD SPEED GEAR

    2A001509
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £52.12
    0
  • 10
    3RD SPEED GEAR

    3RD SPEED GEAR

    2A001238
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £51.22
    0
  • 11
    FIFTH SPEED GEAR

    FIFTH SPEED GEAR

    2A001506
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £48.85
    0
  • 11
    FIFTH SPEED GEAR

    FIFTH SPEED GEAR

    2A001430
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £52.42
    0
  • 12
    BALL D 3.5

    BALL D 3.5

    2A001391
    Back order
    £0.60
    0
  • 13
    1ST SPEED GEAR

    1ST SPEED GEAR

    2A001492
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £49.95
    0
  • 13
    1ST SPEED GEAR

    1ST SPEED GEAR

    2A001352
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £51.22
    0
  • 14
    SECONDARY GEARBOX SHAFT

    SECONDARY GEARBOX SHAFT

    2A001459
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £70.57
    0
  • 14
    SECONDARY GEARBOX SHAFT

    SECONDARY GEARBOX SHAFT

    2A001329
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £68.27
    0
  • 15
    PRIMARY GEAR SHAFT

    PRIMARY GEAR SHAFT

    2A001428
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £84.69
    0
  • 15
    PRIMARY GEAR SHAFT

    PRIMARY GEAR SHAFT

    1A026465
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £87.95
    0
  • 16
    FIFTH SPEED GEAR

    FIFTH SPEED GEAR

    2A001244
    Back order
    £51.22
    0
  • 17
    CLEARANCE WASHER

    CLEARANCE WASHER

    849424
    Back order
    £2.53
    0
  • 18
    3RD-4TH GEAR

    3RD-4TH GEAR

    2A001427
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £57.59
    0
  • 18
    3RD-4TH GEAR

    3RD-4TH GEAR

    1A026464
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £59.80
    0
  • 19
    THRUST WASHER

    THRUST WASHER

    B015040
    Back order
    £1.79
    0
  • 20
    MOVEABLE BUSH

    MOVEABLE BUSH

    974162
    Back order
    £28.72
    0
  • 21
    GEAR 6A

    GEAR 6A

    2A001319
    Back order
    £52.42
    0
  • 22
    CLEARANCE WASHER

    CLEARANCE WASHER

    849396
    Back order
    £2.70
    0
  • 23
    SNAP RING

    SNAP RING

    974165
    10 in stock
    £2.45
    0
  • 24
    2ND SPEED GEAR

    2ND SPEED GEAR

    2A001242
    Back order
    £42.68
    0
  • 25
    4TH SPEED GEAR

    4TH SPEED GEAR

    2A001505
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £52.12
    0
  • 25
    4TH SPEED GEAR

    4TH SPEED GEAR

    2A001239
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £51.22
    0
  • 26
    LOCATING DOWEL Ø7,5X12

    LOCATING DOWEL Ø7,5X12

    277916
    29 in stock
    £5.30
    0
  • 27
    COUNTERSUNK SCREW WITH HEXAGON SOCKET

    COUNTERSUNK SCREW WITH HEXAGON SOCKET

    B013608
    Back order
    £1.48
    0
  • 28
    COUNTERSUNK WASHER

    COUNTERSUNK WASHER

    2A001454
    Back order
    £3.98
    0
  • 29
    BALL BEARING 25X52X15

    BALL BEARING 25X52X15

    GU92201226
    Back order
    £37.23
    0
  • 30
    RADIAL BALL BEARING 30X62X16

    RADIAL BALL BEARING 30X62X16

    1A003038
    Back order
    £9.17
    0
  • 31
    ENGINE GEAR

    ENGINE GEAR

    1A024139
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £182.91
    0
  • 31
    ENGINE GEAR

    ENGINE GEAR

    1A020071
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £103.15
    0
  • 32
    BELLEVILLE SPRING

    BELLEVILLE SPRING

    876337
    Back order
    £4.68
    0
  • 33
    NUT

    NUT

    878296
    Back order
    £11.11
    0
  • 34
    OIL SEAL

    OIL SEAL

    B018223
    Back order
    £3.84
    0
  • 35
    TRANSMISSION CAGE

    TRANSMISSION CAGE

    2A001451
    Back order
    £350.59
    0
  • 36
    GEARBOX COVER

    GEARBOX COVER

    2A001499
    more info + more info -
    Technical Specification: From the engine AY022766[NM]
    Back order
    £92.29
    0
  • 36
    GEARBOX COVER

    GEARBOX COVER

    1A020945
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £97.54
    0
  • 37
    ROLLER CAGE 22X28X16

    ROLLER CAGE 22X28X16

    AP8110067
    6 in stock
    £14.00
    0
  • 38
    SCREW W/ FLANGE M6X30

    SCREW W/ FLANGE M6X30

    874551
    10 in stock
    £1.06
    0
  • 39
    SCREW M8X40

    SCREW M8X40

    825758
    Replaced by

    SCREW W/ FLANGE M8X40

    873980
    Discontinued
    Back order
    N/A
    £0.42
    0
  • 40
    GASKET Ø22XØ28X4

    GASKET Ø22XØ28X4

    2B005214
    Back order
    £10.54
    0
  • 41
    THRUST WASHER

    THRUST WASHER

    2A001457
    more info + more info -
    Technical Specification: Up to engine AY022765[OM]
    Back order
    £1.14
    0
  • 42
    TUBE

    TUBE

    1A020040
    Back order
    £2.75
    0
  • 43
    OIL SEAL 26.7X1.78

    OIL SEAL 26.7X1.78

    B019103
    Back order
    £0.84
    0
  • 44
    SCREW WITHOUT HEAD M8X30

    SCREW WITHOUT HEAD M8X30

    1A024042
    Back order
    £0.91
    0
