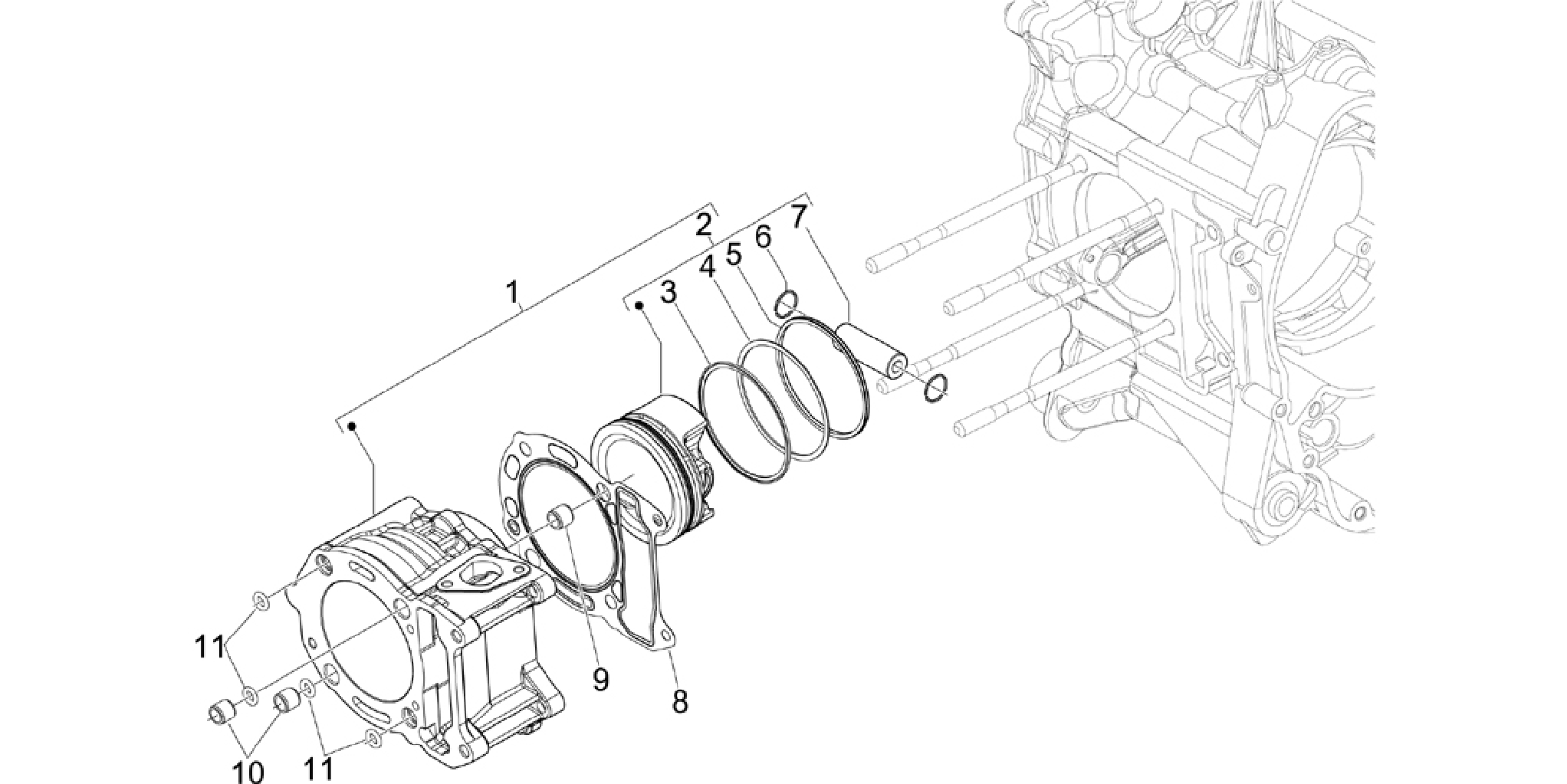

Piaggio Liberty 150 4T 2V E3 PTT 2011 (APAC) Cylinder-piston-wrist pin unit

Cylinder-piston-wrist pin unit
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CYLINDER ASSY SKIP150

    CYLINDER ASSY SKIP150

    827041
    Back order
    £285.82
    0
  • 2
    PIST.-WRIST PIN ASSY.

    PIST.-WRIST PIN ASSY.

    8270280004
    Back order
    £80.70
    0
  • 2
    PIST.-WRIST PIN ASSY.

    PIST.-WRIST PIN ASSY.

    8270280003
    Back order
    £88.95
    0
  • 2
    PIST.-WRIST PIN ASSY.

    PIST.-WRIST PIN ASSY.

    8270280002
    Back order
    £88.95
    0
  • 2
    PIST.-WRIST PIN ASSY.

    PIST.-WRIST PIN ASSY.

    8270280001
    Back order
    £79.50
    0
  • 3
    OIL SEAL

    OIL SEAL

    486294
    Back order
    £6.47
    0
  • 4
    SCRAPER RING

    SCRAPER RING

    486295
    Back order
    £6.47
    0
  • 5
    SCRAPER RING

    SCRAPER RING

    486355
    Back order
    £15.22
    0
  • 6
    SNAP RING

    SNAP RING

    963486
    182 in stock
    £0.48
    0
  • 7
    PISTON PIN

    PISTON PIN

    482335
    11 in stock
    £11.53
    0
  • 8
    CYLINDER BASE GASKET 0,8 MM

    CYLINDER BASE GASKET 0,8 MM

    828148
    Replaced by

    CYLINDER BASE GASKET 0,8 MM

    875114
    4 in stock
    8 in stock
    £2.66
    £12.01
    0
    0
  • 8
    CYLINDER BASE GASKET 0,6 MM

    CYLINDER BASE GASKET 0,6 MM

    828147
    Replaced by

    CYLINDER BASE GASKET 0,6 MM

    875113
    6 in stock
    Back order
    £2.41
    £11.90
    0
    0
  • 8
    CYLINDER BASE GASKET 0,4 MM

    CYLINDER BASE GASKET 0,4 MM

    828146
    Replaced by

    CYLINDER BASE GASKET 0,4 MM

    875112
    5 in stock
    19 in stock
    £2.41
    £12.22
    0
    0
  • 9
    LOCATING DOWEL Ø7,5X12

    LOCATING DOWEL Ø7,5X12

    277916
    29 in stock
    £5.30
    0
  • 10
    LOCATING DOWEL Ø11X10

    LOCATING DOWEL Ø11X10

    478115
    19 in stock
    £0.38
    0
  • 11
    O-RING

    O-RING

    478184
    Replaced by

    O-RING

    B017342
    19 in stock
    23 in stock
    £0.23
    £0.84
    0
    0
