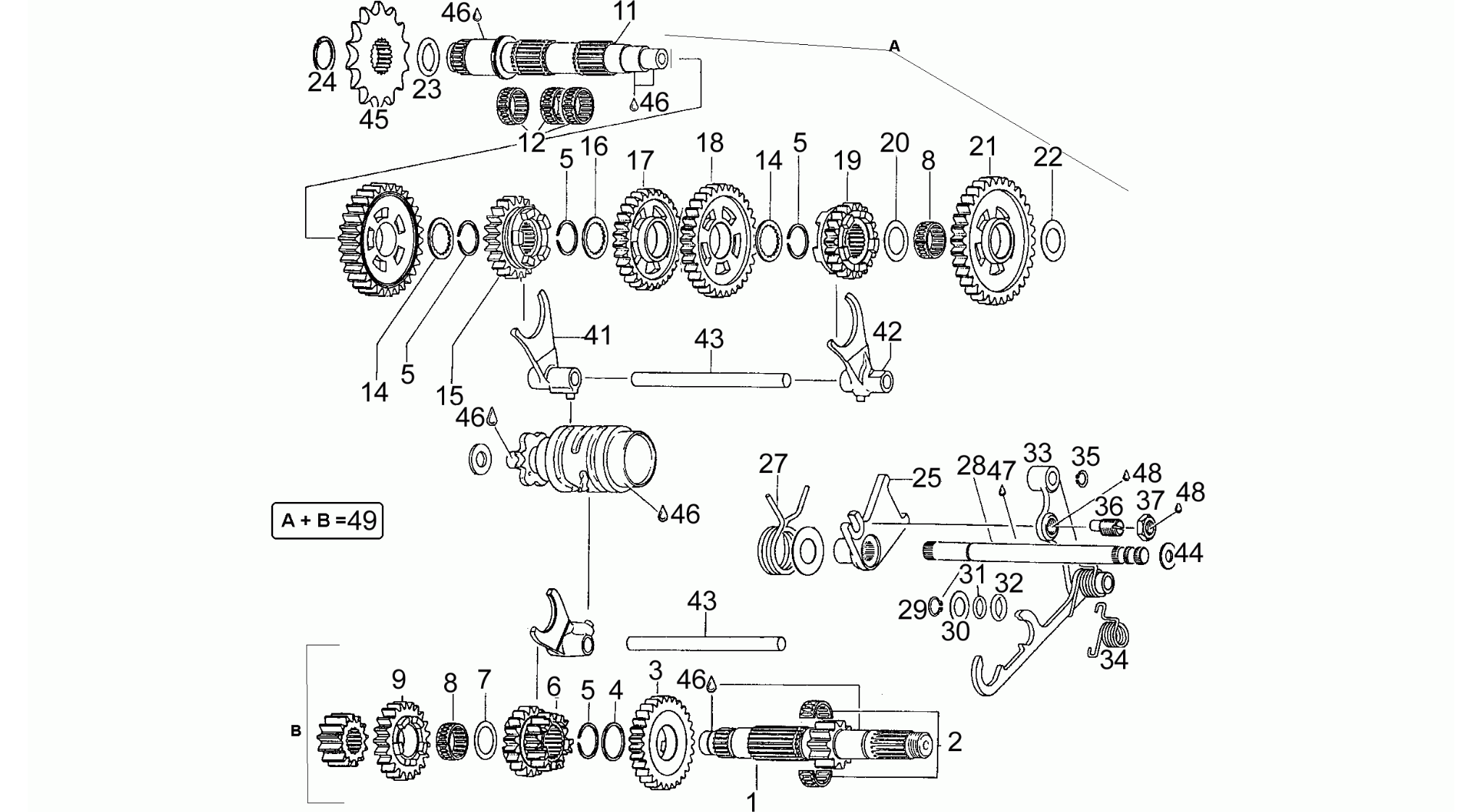

PRIMARY GEAR SHAFT Z=10
ROLLER CAGE 20X24X10
GEAR 6 V.TA' Z=29
GEAR 6 V.TA' Z=25
THRUST WASHER 24,2X27
CIRCLIP 24 MM
GEAR 3-4 V.TA' Z=15/19
THRUST WASHER 20,2X27,5
GEAR 5 V.TA' Z=21
DRIVEN SHAFT
ROLLER CAGE 21X25X10
THRUST WASHER 22X30X1,8
GEAR 5 V.TA' Z=23
RING
GEAR 4 V.TA' Z=29
GEAR 4 V.TA' Z=25
GEAR 3 V.TA' Z=32
GEAR 6 V.TA' Z=21
GEAR 6 V.TA' Z=19
THRUST WASHER
GEAR 1 V.TA' Z=34
GEAR 1 V.TA' Z=32
THRUST WASHER 17,2/30/1
O-RING 18X3,5
CIRCLIP AV 20
LEVER CPL.
SPRING
GEARSHIFT SHAFT+PAWL ASSY
SEEGER 12X1
THRUST WASHER 12,5/21,5
O-RING
O-RING 12-3,5
CIRCLIP 10X1
ADJUSTER SCREW
NUT M12X1
FORK 2-4 V.TÀ
FORK 1-3 V.TÀ
FORK SHAFT
GASKET 8X18X1,5
PINION Z=11
PINION Z=10
LOCTITE ANTI SEIZE 50ML.15378
LITHIUM-BASE GREASE 250GR.
LOCTITE (VIOLET) 221 10CC.
GEAR BOX ASSY
