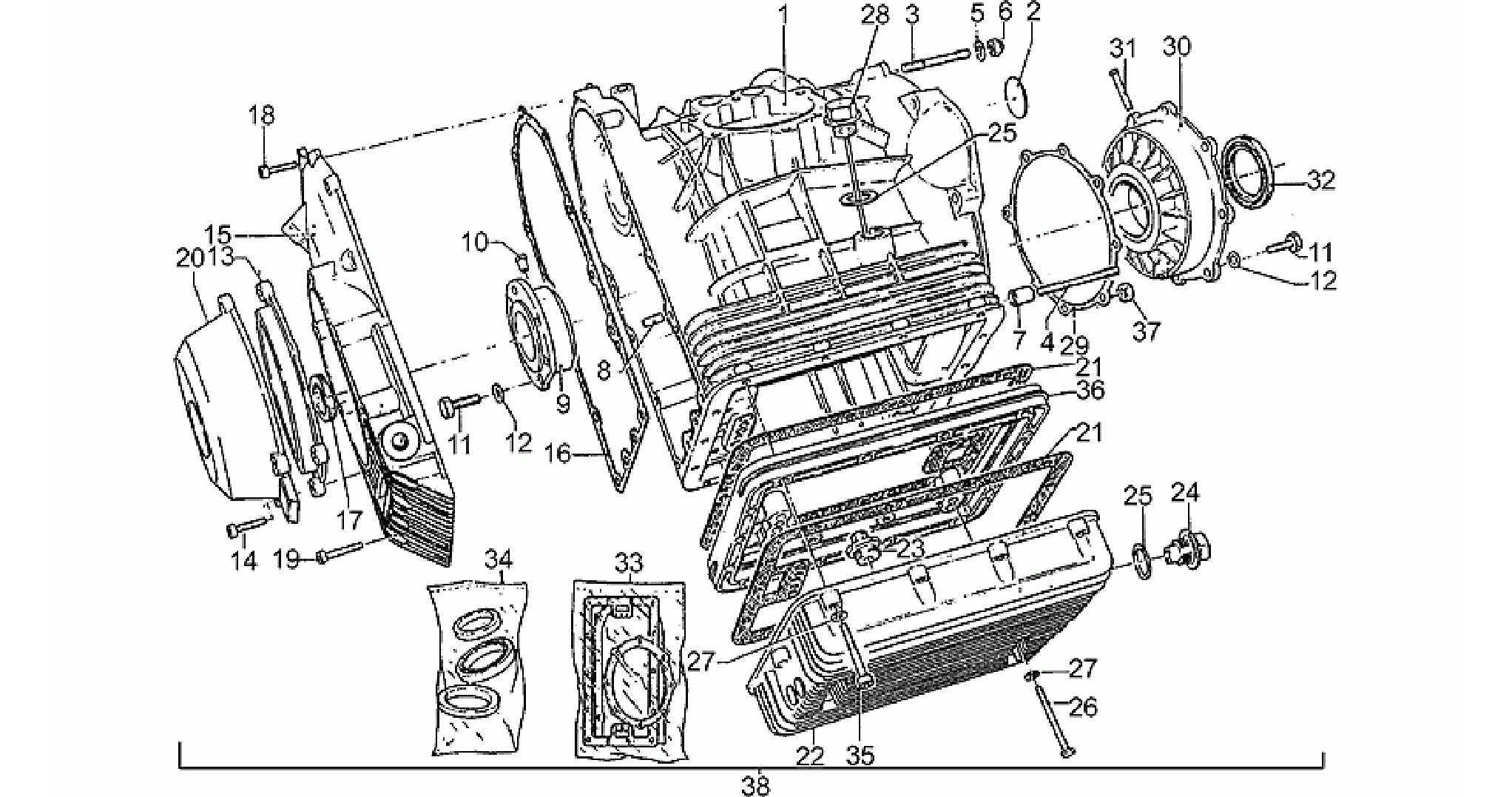

Moto Guzzi California III Carburatori Carenato 1000 1988-1990 Crankcase

Position

Part Name

Stock

Price

1

CRANKCASE

GU28000778

Back order
£537.02

0
2

DISC

GU12003900

Back order
£6.08

0
3

STUD BOLT M8X66

GU96508066

Back order
£37.51

0
4

STUD BOLT M8X75

GU96508075

Back order
£10.02

0
5

WASHER

GU95007208

Back order
£0.58

0
6

CAP NUT

GU92781082

Back order
£0.78

0
7

COUPLING BUSH

GU12018900

Back order
£8.02

0
8

PIN

GU95512081

Back order
£3.23

0
9

FLANGE MIN.0,2 MM

GU14011901

more info + more info -

Technical Specifications: Tolerance min.[M]

Back order
£331.61

0
9

COMPLETE FLANGE

GU14011900

more info + more info -

Technical Specifications: Tolerance standard[std]

Back order
£115.95

0
10

PIN

GU12012200

Back order
£14.99

0
11

SCREW

GU98054425

Back order
£0.38

0
12

SPRING WASHER 8X15X0,3

GU61270300

8 in stock
£1.27

0
13

FLANGE

GU18001150

1 in stock
£12.94

0
14

SCREW

GU98310630

Back order
£0.88

0
15

TIMING SYSTEM COVER

GU30001461

Back order
£108.20

0
16

COVER GASKET

GU12001200
Replaced by

COVER GASKET

GU05001230

Discontinued

2 in stock
N/A

£13.25

0
17

GASKET RING

GU90402038

Back order
£6.48

0
18

HEX SOCKET SCREW

GU98622325

Back order
£0.76

0
19

SCREW M6X35

GU98620335
Replaced by

SCREW

AP8123947

Discontinued

Back order
N/A

£2.00

0
20

COVER

GU18001650

Back order
£26.00

0
21

SUMP GASKET

GU14003600

Back order
£9.18

0
22

OIL SUMP GREY

GU30003560

Back order
£126.13

0
23

OIL FILTER UNION 61 MM

GU14003800

Back order
£60.03

0
24

OIL UNLOAD PLUG

GU12003702

4 in stock
£12.68

0
25

GASKET 20,1X28X2

GU95100709

more info + more info -

Technical Specifications: Up to engine VT033133[M1]

15 in stock
£3.92

0
25

O-RING 17,86X2,62

GU90706178

more info + more info -

Technical Specifications: From engine VT033134[M2]

9 in stock
£0.74

0
26

SCREW

GU98052390

Back order
£1.02

0
27

WASHER 6,15X11X0,8

GU95004206
Replaced by

WASHER 6,15X11X0,8

GU95008206

Discontinued

11 in stock
N/A

£1.85

0
28

OIL PLUG

GU30004910

more info + more info -

Technical Specifications: From engine VT033134[M2]

Back order
£10.63

0
28

OIL FILLER PLUG

GU28004950

more info + more info -

Technical Specifications: Up to engine VT033133[M1]

Back order
£31.25

0
29

GASKET

GU12011800
Replaced by

GASKET

GU05011830

Discontinued

3 in stock
N/A

£7.86

0
30

FLANGE MIN.0,6 MM

GU12011403

more info + more info -

Technical Specifications: Tolerance min.[M]

Back order
£345.47

0
30

FLANGE MIN.0,4 MM

GU12011402

more info + more info -

Technical Specifications: Tolerance min.[M]

Back order
£331.61

0
30

FLANGE MIN.0,2 MM

GU12011401

more info + more info -

Technical Specifications: Tolerance min.[M]

Back order
£331.61

0
30

COMPLETE FLANGE

GU12011400

more info + more info -

Technical Specifications: Tolerance standard[std]

Back order
£126.05

0
31

PIN

GU12011700

Back order
£11.99

0
32

GASKET RING

GU90405367

1 in stock
£26.49

0
33

ENGINE GASKET SET

GU29999000

Back order
£39.67

0
34

ENGINE OIL SEAL KIT

GU17999550

Back order
£178.92

0
35

SCREW

GU98610355

Back order
£2.37

0
36

MOTOR OIL FLANGE

GU30003260

Back order
£119.59

0
37

NUT

GU92601208

Back order
£0.94

0
38

ENGINE W/O GEARBOX

GU29991051

Back order
£0.00

0
