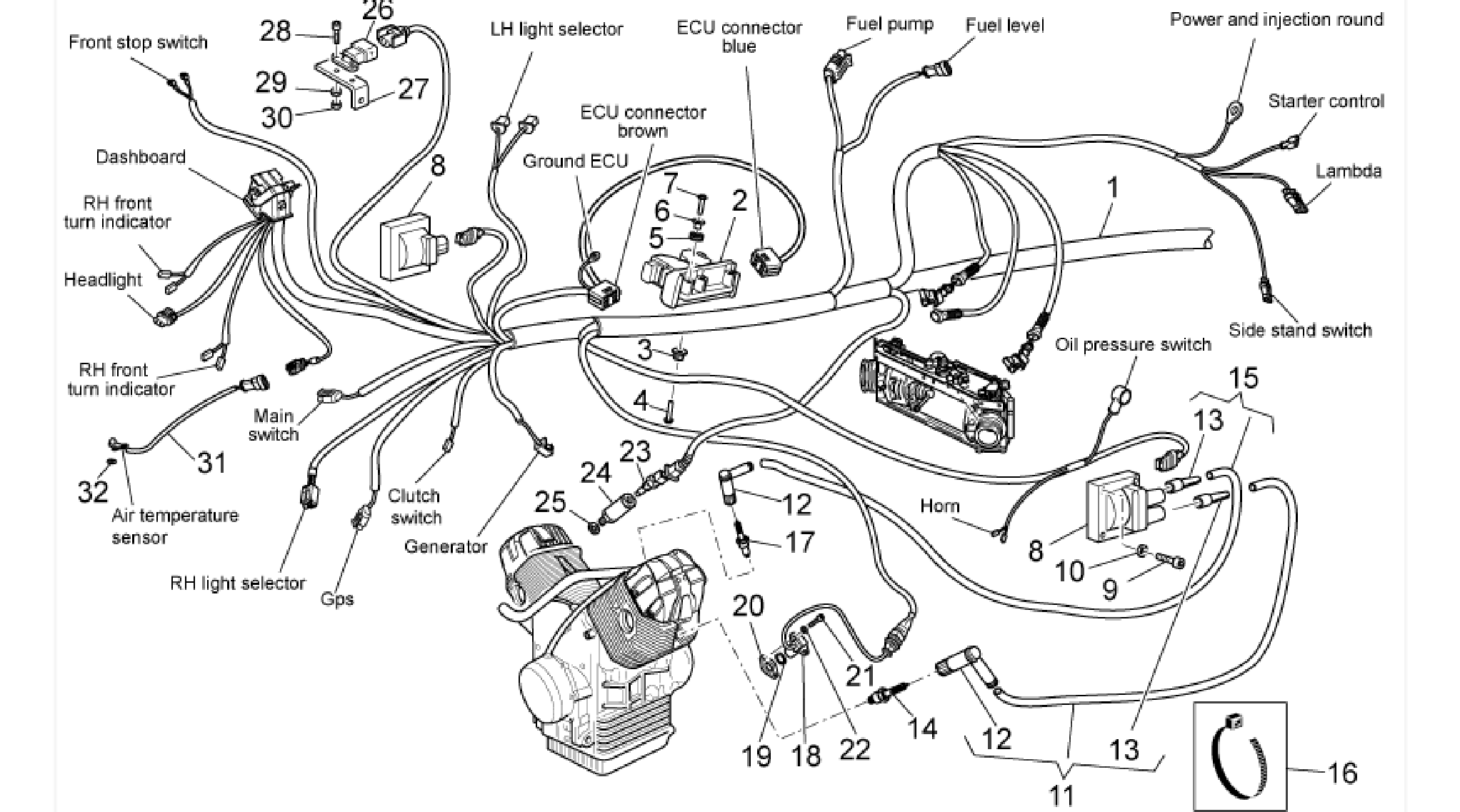

Moto Guzzi Bellagio 940 E3 2007-2013 (APAC, EMEA) Electrical system I

Position

Part Name

Stock

Price

1

MAIN WIRING HARNESS

978366

Back order
£1,032.98

0
2

ECU

978368

1 in stock
£1,030.01

0
3

BUSH

GU05729230

Back order
£8.02

0
4

SCREW W/ FLANGE M6X20

AP8152279

16 in stock
£1.48

0
5

RUBBER SPACER

AP8120030

10 in stock
£1.09

0
6

T BUSH

AP8221023

Back order
£1.30

0
7

SCREW W/ FLANGE M6X35

AP8152282

106 in stock
£1.00

0
8

HT COIL

GU05716530

Back order
£82.53

0
9

HEX SOCKET SCREW

GU98682125

Back order
£0.94

0
10

WASHER

GU95021204

Back order
£1.82

0
11

HT WIRE

978554

Back order
£74.41

0
12

SPARKPLUG CAP

GU06717400

more info + more info -

Technical Specification: For spark plug diameter 10mm[C1]

1 in stock
£22.74

0
12

SPARKPLUG CAP

GU03717450

more info + more info -

Technical Specification: For spark plug diameter 12mm[C2]

2 in stock
£12.82

0
13

CAP

GU14717600

1 in stock
£2.97

0
14

SPARK PLUG NGK BPR6ES

GU30717061

Back order
£6.76

0
15

HT WIRE

977388

Back order
£22.23

0
16

HOSE CLAMP 7,6X380

GU93304360

Back order
£5.98

0
16

HOSE CLAMP 2,4X92

GU49609601

Back order
£0.67

0
16

HOSE CLAMP 3,6X20,6

GU14609650

Back order
£0.76

0
17

SPARK PLUG NGK PMR8B

GU05717030

6 in stock
£46.98

0
18

PHASE/REVOLUTION SENSOR

GU01721600

Back order
£245.94

0
19

O-RING

GU90706141
Replaced by

O-RING

847180

Discontinued

19 in stock
N/A

£2.23

0
20

GASKET 0,5 MM

GU29722760

3 in stock
£2.60

0
20

GASKET 1,5 MM

GU01722705

7 in stock
£2.60

0
20

GASKET 1 MM

GU01722704

1 in stock
£2.59

0
20

GASKET

GU01722703

Back order
£2.60

0
20

GASKET 0,6 MM

GU01722702

Back order
£2.60

0
20

GASKET 0,4 MM

GU01722701

Back order
£2.60

0
20

GASKET 0,3 MM

GU01722700

5 in stock
£2.60

0
21

HEX SOCKET SCREW M5X12

GU98682212

Back order
£0.79

0
22

WASHER 5,3X10X0,8

GU95008205

3 in stock
£0.94

0
23

OIL TEMPERATURE SENSOR

GU29729461

5 in stock
£111.19

0
24

SENSOR SUPPORT

GU03163330

Back order
£50.83

0
25

WASHER 10,2X18X2

GU95008210

7 in stock
£0.63

0
26

AIR TEMP. SENSOR

GU30729330

Back order
£92.97

0
27

SENSOR SUPPORT

GU30728230

Back order
£12.13

0
28

HEX SOCKET SCREW M3X10

GU98680110

Back order
£1.01

0
29

WASHER 3,2X5,8X0,8

GU95120033

Back order
£1.82

0
30

NUT M3

GU92606003

Back order
£1.46

0
31

AIR TEMP. SENSOR

AP8124936

8 in stock
£65.27

0
32

WASHER FOR SHAFTS

GU90274002

7 in stock
£1.87

0
