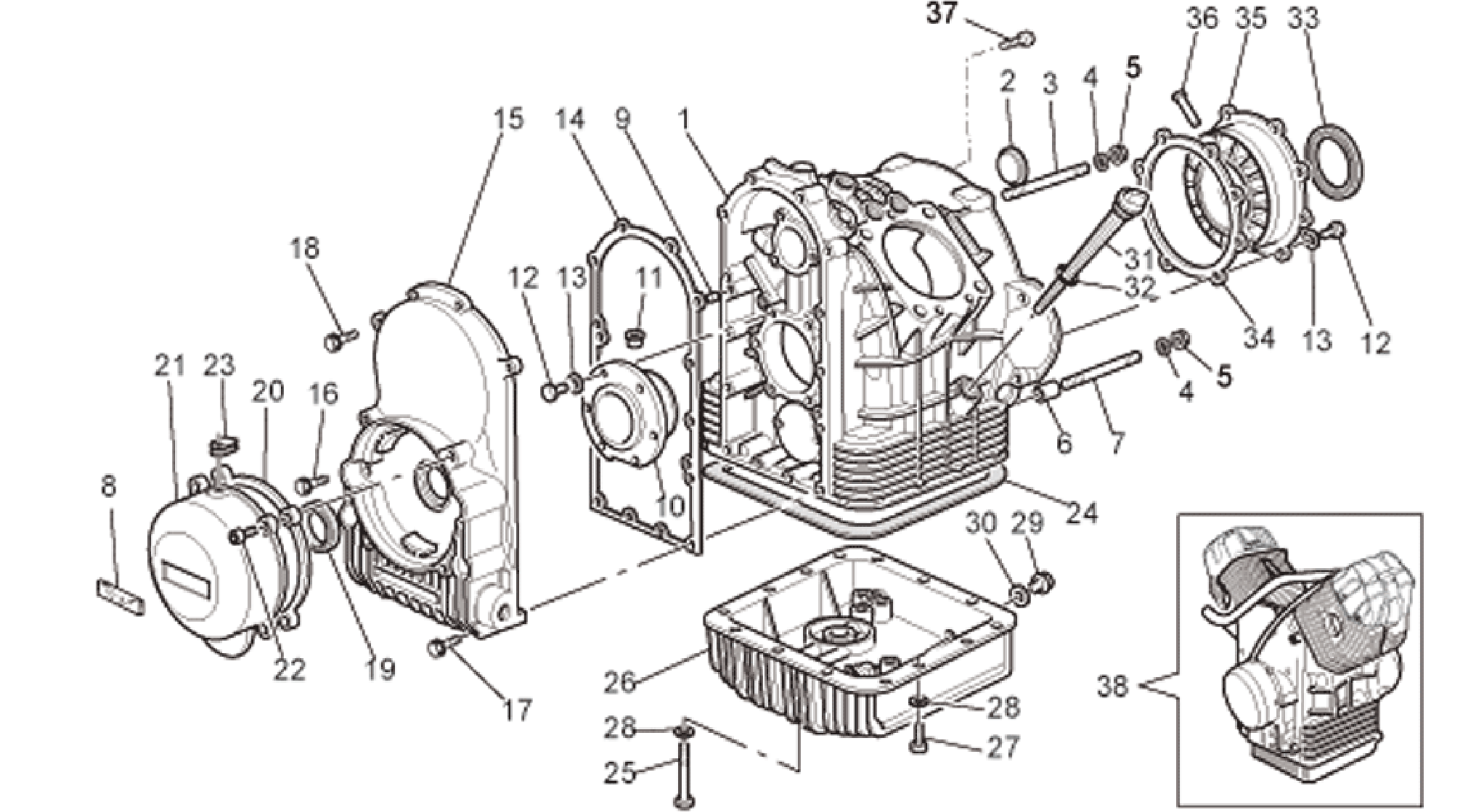

Moto Guzzi Bellagio 940 E3 2007-2013 (APAC, EMEA) Crank-case

Crank-case
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CRANKCASE BLACK

    CRANKCASE BLACK

    976449
    Back order
    £1,712.76
    0
  • 2
    DISC

    DISC

    GU12003900
    Back order
    £6.08
    0
  • 3
    STUD BOLT M8X66

    STUD BOLT M8X66

    GU96508066
    Back order
    £37.51
    0
  • 4
    WASHER 8,4X13X0,8

    WASHER 8,4X13X0,8

    GU14615901
    18 in stock
    £1.85
    0
  • 5
    FLANGED NUT M8

    FLANGED NUT M8

    GU92660021
    6 in stock
    £1.18
    0
  • 6
    COUPLING BUSH

    COUPLING BUSH

    GU12018900
    Back order
    £8.02
    0
  • 7
    STUD BOLT M8X75

    STUD BOLT M8X75

    GU96508075
    Back order
    £10.02
    0
  • 8
    ADHESIVE LABEL

    ADHESIVE LABEL

    GU02517700
    1 in stock
    £19.62
    0
  • 9
    PIN

    PIN

    GU95512081
    Back order
    £3.23
    0
  • 10
    FLANGE MIN.0,2 MM

    FLANGE MIN.0,2 MM

    GU14011901
    Back order
    £331.61
    0
  • 10
    COMPLETE FLANGE

    COMPLETE FLANGE

    GU14011900
    Back order
    £115.95
    0
  • 11
    PIN

    PIN

    GU12012200
    Back order
    £14.99
    0
  • 12
    HEX SCREW M8X25

    HEX SCREW M8X25

    GU98084425
    4 in stock
    £0.76
    0
  • 13
    SPRING WASHER 8X15X0,3

    SPRING WASHER 8X15X0,3

    GU61270300
    8 in stock
    £1.27
    0
  • 14
    COVER GASKET

    COVER GASKET

    GU05001230
    2 in stock
    £13.25
    0
  • 15
    TIMING COVER BLACK

    TIMING COVER BLACK

    976450
    Back order
    £92.14
    0
  • 16
    SCREW W/ FLANGE M6X25

    SCREW W/ FLANGE M6X25

    AP8152280
    113 in stock
    £1.96
    0
  • 17
    SCREW W/ FLANGE M6X35

    SCREW W/ FLANGE M6X35

    AP8152282
    106 in stock
    £1.00
    0
  • 18
    SCREW W/ FLANGE M8X25

    SCREW W/ FLANGE M8X25

    AP8152287
    16 in stock
    £4.62
    0
  • 19
    GASKET RING 28X38X7

    GASKET RING 28X38X7

    GU90402840
    1 in stock
    £11.39
    0
  • 20
    FLANGE

    FLANGE

    GU18001150
    1 in stock
    £12.94
    0
  • 21
    GENERATOR COVER POLISHED PLATED

    GENERATOR COVER POLISHED PLATED

    GU03001600
    Back order
    £146.47
    0
  • 22
    SCREW

    SCREW

    GU98310631
    9 in stock
    £1.17
    0
  • 23
    RUBBER SPACER

    RUBBER SPACER

    GU19007700
    Back order
    £4.35
    0
  • 24
    SUMP GASKET

    SUMP GASKET

    GU14003600
    Back order
    £9.18
    0
  • 25
    SCREW

    SCREW

    GU98082390
    7 in stock
    £3.90
    0
  • 26
    OIL SUMP BLACK

    OIL SUMP BLACK

    976451
    Replaced by

    OIL SUMP BLACK

    9764511
    Discontinued
    Back order
    N/A
    £109.68
    0
  • 27
    HEX SOCKET SCREW M6X25

    HEX SOCKET SCREW M6X25

    GU98682325
    7 in stock
    £0.94
    0
  • 28
    WASHER 6,15X11X0,8

    WASHER 6,15X11X0,8

    GU95008206
    11 in stock
    £1.85
    0
  • 29
    OIL UNLOAD PLUG

    OIL UNLOAD PLUG

    GU12003702
    4 in stock
    £12.68
    0
  • 30
    GASKET 20,1X28X2

    GASKET 20,1X28X2

    GU95100709
    15 in stock
    £3.92
    0
  • 31
    OIL PLUG

    OIL PLUG

    GU30004910
    Back order
    £10.63
    0
  • 32
    O-RING 17,86X2,62

    O-RING 17,86X2,62

    GU90706178
    9 in stock
    £0.74
    0
  • 33
    GASKET RING

    GASKET RING

    GU90405367
    1 in stock
    £26.49
    0
  • 34
    GASKET

    GASKET

    GU05011830
    3 in stock
    £7.86
    0
  • 35
    FLANGE MIN.0,6 MM

    FLANGE MIN.0,6 MM

    GU12011403
    Back order
    £345.47
    0
  • 35
    FLANGE MIN.0,4 MM

    FLANGE MIN.0,4 MM

    GU12011402
    Back order
    £331.61
    0
  • 35
    FLANGE MIN.0,2 MM

    FLANGE MIN.0,2 MM

    GU12011401
    Back order
    £331.61
    0
  • 35
    COMPLETE FLANGE

    COMPLETE FLANGE

    GU12011400
    Back order
    £126.05
    0
  • 36
    PIN

    PIN

    GU12011700
    Back order
    £11.99
    0
  • 37
    SCREW W/ FLANGE

    SCREW W/ FLANGE

    AP8152291
    63 in stock
    £1.53
    0
  • 38
    ENGINE BLACK

    ENGINE BLACK

    976923
    Back order
    £4,105.32
    0
