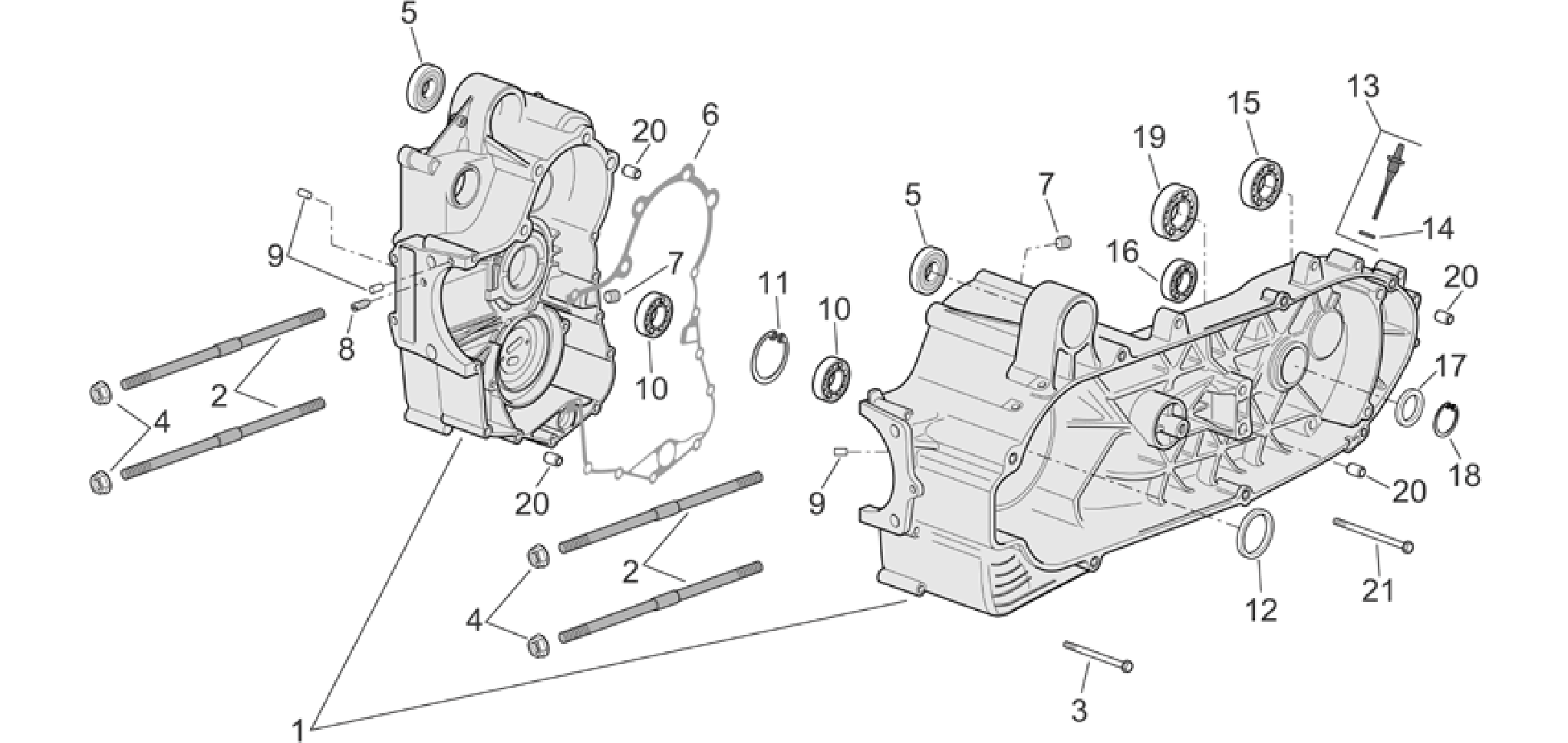

Aprilia Atlantic Sprint 400-500 4T 2005-2008 (EMEA) Crankcase

Position

Part Name

Stock

Price

1

CRANKCASE ASSY CAT4

AP8560213

Back order
£768.50

0
1

CRANKCASE ASSY CAT3

AP8560212
Replaced by

COMPLETE CRANKCASE

CM1568025003

Discontinued

1 in stock
N/A

£1,640.94

0
1

CRANKCASE ASSY CAT2

AP8560211
Replaced by

2ND CAT. COMPLETE CRANKCASE

CM1568025002

Discontinued

Back order
N/A

£1,706.41

0
1

CRANKCASE ASSY

AP8560210
Replaced by

COMPLETE CRANKCASE 1ST CAT.

CM1568025001

Discontinued

Back order
N/A

£1,710.38

0
2

STUD BOLT M10X1,25X166

AP8560076
Replaced by

STUD BOLT M10X1.25X166

827951

4 in stock

Back order
£7.88

£7.88

0

0
3

SCREW W/ FLANGE M6X65

AP8560104
Replaced by

SCREW W/ FLANGE M6X65

828909

Discontinued

20 in stock
N/A

£0.68

0
4

NUT M10X1,25

AP8560042

Back order
£0.64

0
5

BEARING D20X42X12

AP8560096
Replaced by

BEARING 20X42X1

82656R

4 in stock

4 in stock
£9.50

£9.50

0

0
6

GASKET

AP8560084
Replaced by

HALF CRANKCASE GASKET

828114

1 in stock

13 in stock
£13.59

£13.59

0

0
7

COVER M12X1,5

AP8560014
Replaced by

PLUG M12X1,5

411311

Discontinued

12 in stock
N/A

£1.20

0
8

NOZZLE

AP8560017
Replaced by

NOZZLE

484034

Discontinued

9 in stock
N/A

£6.41

0
9

DOWEL

AP8560016
Replaced by

LOCATING DOWEL Ø11X10

478115

Discontinued

19 in stock
N/A

£0.84

0
10

BEARING D20X52X15

AP8570004
Replaced by

BEARING D20X52X15

82660R

Discontinued

2 in stock
N/A

£23.11

0
11

SNAP RING

AP8540001
Replaced by

SNAP RING

006652

Discontinued

9 in stock
N/A

£3.98

0
12

OIL SEAL 35X47X7

AP8560123

4 in stock
£6.34

0
13

OIL LEVEL ROD CPL.

AP8570016

more info + more info -

Technical Specification: Frame number ZD4VL0 (E2 omologation)[VL0]

Replaced by

OIL DIPSTICK

831941

Discontinued

Back order
N/A

£4.69

0
13

OIL LEVEL ROD CPL.

AP8276037

more info + more info -

Technical Specification: Frame number ZD4VLA (E3 omologation)[VLA] Frame number ZD4VLB (E3 omologation)[VLB]

Replaced by

COMPLETE OIL LEVEL DIPSTICK

832130

1 in stock

47 in stock
£5.19

£5.19

0

0
14

O-RING

AP8550334
Replaced by

GASKET RING 14,43X9,19X2,62

827085

20 in stock

146 in stock
£0.77

£0.77

0

0
15

BEARING

AP8570030
Replaced by

RADIAL BALL BEARING 20X47X14

833701

Discontinued

1 in stock
N/A

£20.58

0
16

BEARING D15X42X13

AP8560019
Replaced by

RADIAL BALL BEARING 15X42X13

485912

6 in stock

15 in stock
£18.23

£18.23

0

0
17

OIL SEAL 25X40X7

AP8560030
Replaced by

OIL SEAL 25X40X7

825238

1 in stock

9 in stock
£5.68

£5.68

0

0
18

SNAP RING

AP8560007
Replaced by

CIRCLIP 25X26.9X1.2

000674

Discontinued

68 in stock
N/A

£1.93

0
19

BEARING D25X52X15

AP8560027
Replaced by

BEARING 52X25X15

825233

Discontinued

4 in stock
N/A

£9.38

0
20

PIN D.9,5 H=15

AP8550107
Replaced by

PIN 6,5X9,5X15

239388

46 in stock

46 in stock
£1.08

£1.08

0

0
21

SCREW W/ FLANGE M6X75

AP8560106
Replaced by

SCREW W/ FLANGE M6X75

828922

Discontinued

Back order
N/A

£1.76

0
