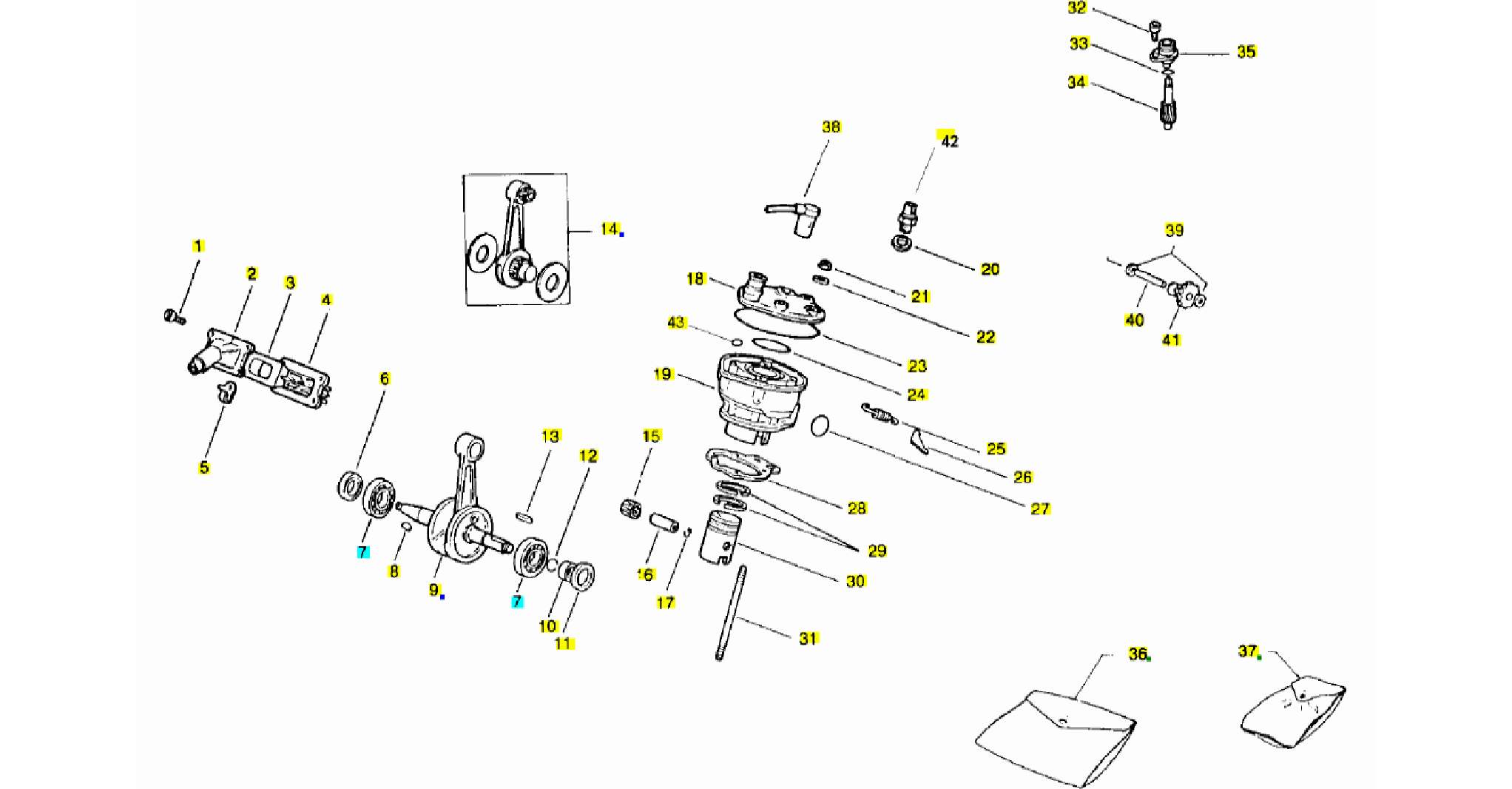

Aprilia AF1 FUTURA 50 1991-1992 Drive shaft - Cylinder

Drive shaft - Cylinder
Skip to results list
Position
Part Name
Stock
Price
  • 1
    SCREW M6X20

    SCREW M6X20

    AP8502564
    3 in stock
    £0.90
    0
  • 2
    INTAKE MANIFOLD D.14

    INTAKE MANIFOLD D.14

    AP8206301
    Back order
    £9.17
    0
  • 3
    REED VALVE FIX.PLATE

    REED VALVE FIX.PLATE

    AP8206242
    Discontinued
    N/A
  • 4
    REED VALVE ASSY

    REED VALVE ASSY

    AP8206300
    Discontinued
    N/A
  • 5
    CLUTCH CABLE ANCHOR BRIDGE

    CLUTCH CABLE ANCHOR BRIDGE

    AP8206303
    Discontinued
    N/A
  • 6
    OIL SEAL D17X35X8

    OIL SEAL D17X35X8

    AP8509182
    10 in stock
    £4.18
    0
  • 7
    BEARING D17X47X14

    BEARING D17X47X14

    AP8206282
    Discontinued
    N/A
  • 8
    FLYWHEEL MAGNETO KEY

    FLYWHEEL MAGNETO KEY

    AP8508551
    Back order
    £1.76
    0
  • 9
    CRANKSHAFT ASSY

    CRANKSHAFT ASSY

    AP8206311
    Back order
    £258.75
    0
  • 10
    SPACER D16,9X24X8

    SPACER D16,9X24X8

    AP8206268
    Discontinued
    N/A
  • 11
    OIL SEAL D24X35X7

    OIL SEAL D24X35X7

    AP8206290
    3 in stock
    £14.63
    0
  • 12
    O-RING

    O-RING

    AP8502656
    89 in stock
    £3.75
    0
  • 13
    TRANSMISSION KEY 4X4X20

    TRANSMISSION KEY 4X4X20

    AP8206264
    21 in stock
    £2.38
    0
  • 14
    CONNECTING ROD CPL.

    CONNECTING ROD CPL.

    AP8206349
    2 in stock
    £88.37
    0
  • 15
    CAGE D12X15X15

    CAGE D12X15X15

    AP8509769
    12 in stock
    £11.15
    0
  • 16
    PISTON PIN D12X34,5

    PISTON PIN D12X34,5

    AP8502846
    11 in stock
    £6.25
    0
  • 17
    STOP RING D12

    STOP RING D12

    AP8206019
    111 in stock
    £2.27
    0
  • 18
    CYLINDER HEAD, GREY

    CYLINDER HEAD, GREY

    AP8206374
    Replaced by

    CYLINDER HEAD, GREY

    AP8106692
    Discontinued
    Discontinued
    N/A
    N/A
  • 19
    CYLINDER WITH PISTON D40,3

    CYLINDER WITH PISTON D40,3

    AP8206375
    Discontinued
    N/A
  • 20
    GASKET 14,1X22X1

    GASKET 14,1X22X1

    AP8508560
    30 in stock
    £1.46
    0
  • 21
    CAP SELF-LOCKING NUT M7X1

    CAP SELF-LOCKING NUT M7X1

    AP8206427
    Discontinued
    N/A
  • 22
    WASHER

    WASHER

    AP8206428
    Replaced by

    SPRING WASHER 0

    AP8206721
    Discontinued
    Discontinued
    N/A
    N/A
  • 23
    O-RING 104,3X3,5

    O-RING 104,3X3,5

    AP8206286
    29 in stock
    £8.45
    0
  • 24
    O-RING D51,5X1,78

    O-RING D51,5X1,78

    AP8206285
    68 in stock
    £7.69
    0
  • 25
    EXHAUST PIPE FIXING SPRING

    EXHAUST PIPE FIXING SPRING

    AP8507839
    1 in stock
    £2.37
    0
  • 26
    SPRING FIXING PLATE

    SPRING FIXING PLATE

    AP8508882
    Back order
    £4.99
    0
  • 27
    O-RING D28,2X2,6

    O-RING D28,2X2,6

    AP8502668
    5 in stock
    £7.11
    0
  • 28
    CYLINDER BASE GASKET

    CYLINDER BASE GASKET

    AP8206292
    58 in stock
    £1.74
    0
  • 29
    PISTON RING SET D40,3

    PISTON RING SET D40,3

    AP8206302
    Replaced by

    PISTON RING SET D40,3X1,2

    AP8206952
    5 in stock
    6 in stock
    £26.23
    £26.23
    0
    0
  • 30
    PISTON ASSY D40,3

    PISTON ASSY D40,3

    AP8206250
    5 in stock
    £96.09
    0
  • 31
    STUD BOLT M7X115

    STUD BOLT M7X115

    AP8508553
    4 in stock
    £5.43
    0
  • 32
    SCREW M6X12

    SCREW M6X12

    AP8206202
    31 in stock
    £1.70
    0
  • 33
    O-RING D11,8X2,4

    O-RING D11,8X2,4

    AP8206262
    41 in stock
    £0.90
    0
  • 34
    TACHOMETER DRIVEN GEAR

    TACHOMETER DRIVEN GEAR

    AP8206251
    Discontinued
    N/A
  • 35
    TACHOMETER OUPUT FLANGE

    TACHOMETER OUPUT FLANGE

    AP8206240
    Discontinued
    N/A
  • 36
    GASKET SET

    GASKET SET

    AP8206305
    16 in stock
    £11.68
    0
  • 37
    OIL SEALS - SET

    OIL SEALS - SET

    AP8206304
    9 in stock
    £27.64
    0
  • 38
    SPARKPLUG CAP

    SPARKPLUG CAP

    AP8220179
    Back order
    £13.16
    0
  • 39
    BLUE STEEL WASHER D8,4X16

    BLUE STEEL WASHER D8,4X16

    AP8206277
    15 in stock
    £1.59
    0
  • 40
    PUMP BODY ROLLER D4X10

    PUMP BODY ROLLER D4X10

    AP8206338
    6 in stock
    £0.58
    0
  • 41
    TACHOMETER DRIVING GEAR

    TACHOMETER DRIVING GEAR

    AP8206252
    Discontinued
    N/A
  • 42
    THERMOSTAT

    THERMOSTAT

    AP8206383
    2 in stock
    £28.44
    0
  • 43
    O-RING D7,65X1,78

    O-RING D7,65X1,78

    AP8502655
    145 in stock
    £1.12
    0
