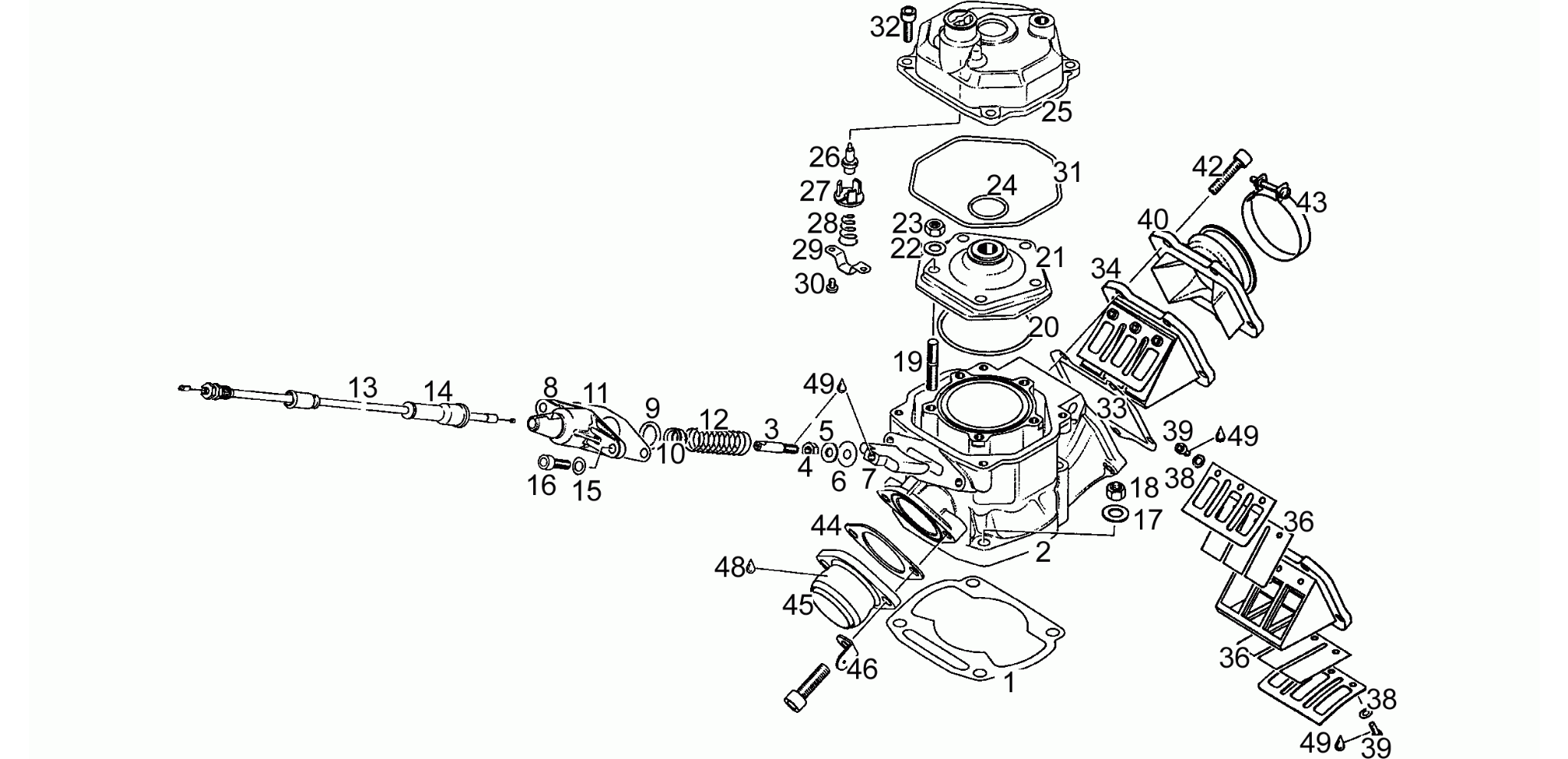

Aprilia AF1 FUTURA 125 1990-1992 Cylinder

Cylinder
Skip to results list
Position
Part Name
Stock
Price
  • 1
    CYLINDER BASE GASKET 0,5

    CYLINDER BASE GASKET 0,5

    AP0650091
    Replaced by

    GASKET 0,5

    AP0650096
    10 in stock
    30 in stock
    £11.17
    £11.17
    0
    0
  • 1
    CYLINDER BASE GASKET 0,3

    CYLINDER BASE GASKET 0,3

    AP0650090
    Replaced by

    GASKET 0,3

    AP0650095
    8 in stock
    33 in stock
    £8.08
    £8.08
    0
    0
  • 2
    CYLINDER

    CYLINDER

    AP0223616
    Back order
    £756.15
    0
  • 3
    VALVE PIN

    VALVE PIN

    AP0253470
    Back order
    £87.41
    0
  • 4
    NUT M6

    NUT M6

    AP0242211
    6 in stock
    £5.62
    0
  • 5
    WASHER 6,4

    WASHER 6,4

    AP0244211
    5 in stock
    £0.46
    0
  • 6
    WASHER 6,2X18X0,5

    WASHER 6,2X18X0,5

    AP0827307
    3 in stock
    £10.05
    0
  • 7
    EXHAUST VALVE 54 MM

    EXHAUST VALVE 54 MM

    AP0253372
    Replaced by

    EXHAUST VALVE 1 TECHNICAL SPECIFICATIONS: VERSION

    AP0253373
    1 in stock
    129 in stock
    £120.35
    £120.35
    0
    0
  • 8
    VALVE GUIDE

    VALVE GUIDE

    AP0253460
    1 in stock
    £75.03
    0
  • 9
    O-RING 14X3

    O-RING 14X3

    AP0831500
    Replaced by

    O-RING 14X3,2

    AP0650350
    Discontinued
    37 in stock
    N/A
    £7.09
    0
  • 10
    VALVE STEM SEAL

    VALVE STEM SEAL

    AP0230810
    2 in stock
    £13.64
    0
  • 11
    GASKET 0,8

    GASKET 0,8

    AP0250975
    Replaced by

    GASKET R.A.V.E. VALVE HOUSING

    AP0250975X
    23 in stock
    74 in stock
    £6.64
    £6.64
    0
    0
  • 12
    SPRING

    SPRING

    AP0239050
    593 in stock
    £9.70
    0
  • 13
    ELECT.RAVE VALVE CABLE

    ELECT.RAVE VALVE CABLE

    AP8114175
    Replaced by

    ELECT.RAVE VALVE CABLE

    AP0297746
    190 in stock
    Back order
    £36.54
    £36.54
    0
    0
  • 14
    RUBBER CAP

    RUBBER CAP

    AP0860460
    Back order
    £15.54
    0
  • 15
    SPRING WASHER B6

    SPRING WASHER B6

    AP0845020
    58 in stock
    £0.80
    0
  • 16
    HEX SOCKET SCREW M6X20

    HEX SOCKET SCREW M6X20

    AP0241930
    13 in stock
    £1.56
    0
  • 17
    WASHER 8,4

    WASHER 8,4

    AP0250311
    1 in stock
    £1.00
    0
  • 18
    NUT M8

    NUT M8

    AP0942671
    Replaced by

    NUT

    AP0942674
    1 in stock
    10 in stock
    £1.04
    £5.51
    0
    0
  • 19
    STUD BOLT M7X19/22

    STUD BOLT M7X19/22

    AP0241241
    56 in stock
    £5.61
    0
  • 20
    O-RING 64X2

    O-RING 64X2

    AP0250160
    50 in stock
    £8.48
    0
  • 21
    CYLINDER HEAD COVER

    CYLINDER HEAD COVER

    AP0223386
    Replaced by

    CYLINDER HEAD

    AP0223384
    Discontinued
    Back order
    N/A
    £111.07
    0
  • 22
    WASHER 7,4

    WASHER 7,4

    AP0227571
    7 in stock
    £2.82
    0
  • 23
    NUT

    NUT

    AP0242591
    89 in stock
    £0.82
    0
  • 24
    O-RING 23,3X2,4

    O-RING 23,3X2,4

    AP0430782
    7 in stock
    £4.97
    0
  • 25
    CYLINDER HEAD COVER

    CYLINDER HEAD COVER

    AP0223398
    Replaced by

    CYLINDER HEAD COVER

    AP0613101
    Discontinued
    Back order
    N/A
    £176.82
    0
  • 26
    THERMOSTAT 70°

    THERMOSTAT 70°

    AP0222122
    Discontinued
    N/A
  • 27
    THERMOSTAT HOLDER

    THERMOSTAT HOLDER

    AP0222175
    2 in stock
    £14.29
    0
  • 28
    SPRING

    SPRING

    AP0239950
    1 in stock
    £10.62
    0
  • 29
    THERMOSTAT BOW

    THERMOSTAT BOW

    AP0222202
    3 in stock
    £15.00
    0
  • 30
    SPECIAL CAP SCREW M4X8

    SPECIAL CAP SCREW M4X8

    AP0240195
    3 in stock
    £0.66
    0
  • 31
    O-RING 105X2,5

    O-RING 105X2,5

    AP0250280
    214 in stock
    £3.97
    0
  • 33
    GASKET

    GASKET

    AP0250521
    94 in stock
    £3.59
    0
  • 34
    REED VALVE ASSY

    REED VALVE ASSY

    AP0224387
    Replaced by

    REED VALVE ASSY

    AP0224389
    Discontinued
    Back order
    N/A
    £163.29
    0
  • 36
    REED VALVE ASSY

    REED VALVE ASSY

    AP0224430
    2 in stock
    £19.35
    0
  • 38
    BREAK WASHER A4

    BREAK WASHER A4

    AP0945758
    13 in stock
    £1.57
    0
  • 39
    ROUND SCREW M4X8

    ROUND SCREW M4X8

    AP0940235
    6 in stock
    £0.35
    0
  • 40
    CARBURETTOR FLANGE

    CARBURETTOR FLANGE

    AP0267915
    9 in stock
    £98.45
    0
  • 42
    HEX SOCKET SCREW M6X25

    HEX SOCKET SCREW M6X25

    AP0840861
    2 in stock
    £2.22
    0
  • 43
    HOSE CLAMP 51

    HOSE CLAMP 51

    AP0251850
    3 in stock
    £8.91
    0
  • 44
    GASKET

    GASKET

    AP0250271
    Replaced by

    GASKET EXHAUST

    AP0250271X
    24 in stock
    30 in stock
    £16.67
    £16.67
    0
    0
  • 45
    EXHAUST FLANGE CPL.

    EXHAUST FLANGE CPL.

    AP0273882
    Replaced by

    EXHAUST FLANGE CPL.

    AP0273970
    Discontinued
    Back order
    N/A
    £73.81
    0
  • 46
    BUTT STRAP

    BUTT STRAP

    AP0224067
    Discontinued
    N/A
  • 48
    LOCTITE ANTI SEIZE 50ML.15378

    LOCTITE ANTI SEIZE 50ML.15378

    AP0297434
    Back order
    £9.75
    0
  • 49
    LOCTITE (GREEN) 648 5GR.

    LOCTITE (GREEN) 648 5GR.

    AP0899788
    Discontinued
    N/A
