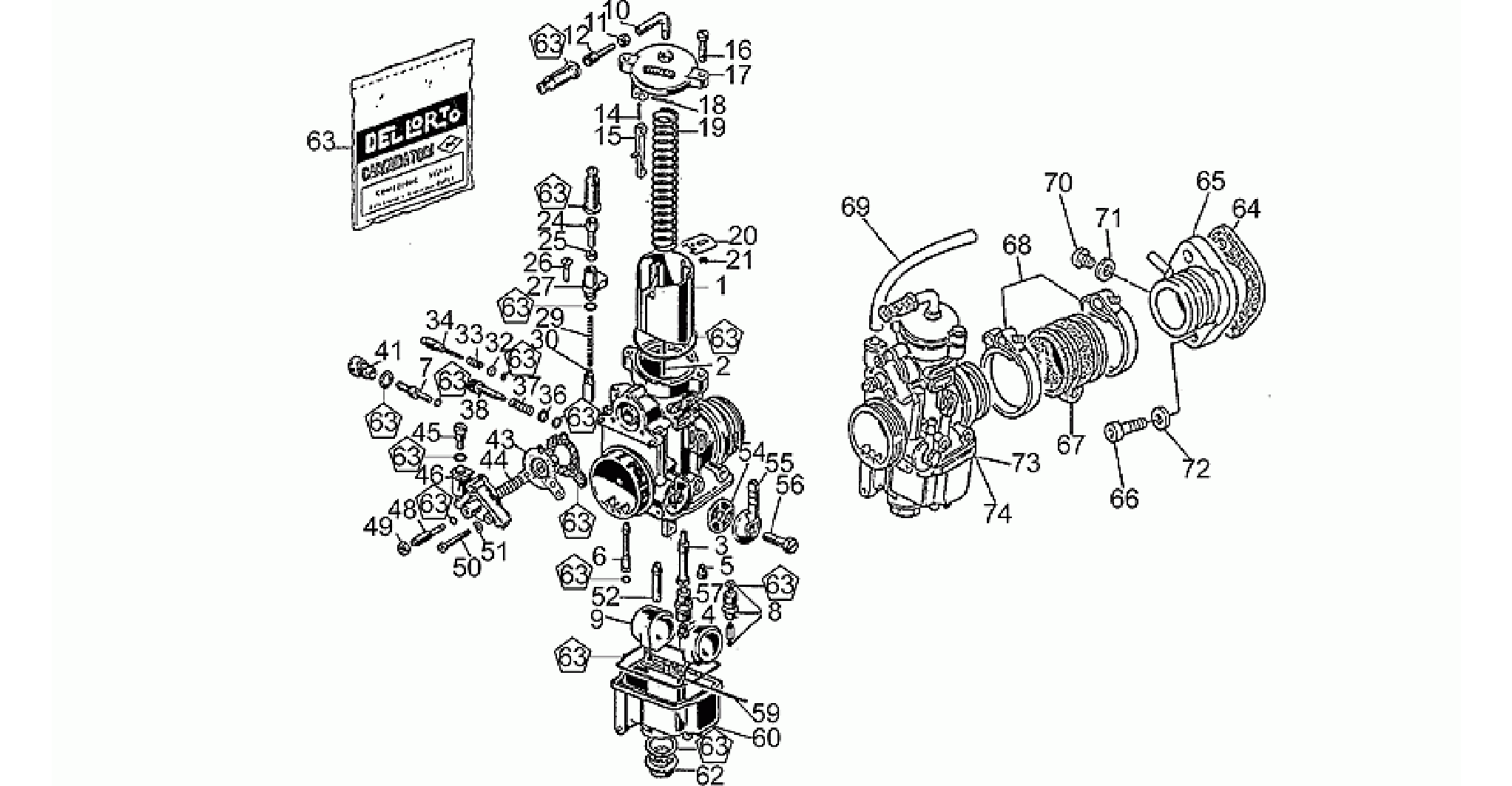

Moto Guzzi 850 T5 Polizia/CC/PA (NC) 850 1995-2001 Carburettor

Position

Part Name

Stock

Price

1

GAS VALVE 50/3

GU28937511

Back order
£42.33

0
2

CONICAL PIN K23

GU28937711

Back order
£3.06

0
3

NEEDLE VALVE AB 264

GU28935511

Back order
£14.67

0
4

MAIN JET 120

GU28935748

more info + more info -

Technical Specifications: See spare parts comm.n.012 of 2000[01200N], From the frame no. VR111384 (CAT Vers.) [T2]

Back order
£6.65

0
4

MAIN JET 130

GU28935711

more info + more info -

Technical Specifications: To the engine number

Back order
£5.01

0
5

IDLE JET 50

GU66935910

Back order
£1.36

0
6

STARTER JET 75

GU17936067

Back order
£9.98

0
7

PUMP JET 38

GU28939011

Back order
£26.41

0
8

NEEDLE VALVE 250

GU17939167
Replaced by

NEEDLE VALVE 250

318604

Discontinued

1 in stock
N/A

£27.52

0
9

FLOAT

GU14933000

Back order
£11.46

0
10

PIPE

GU49938900

1 in stock
£10.05

0
11

NUT

GU19938880

Back order
£1.96

0
12

WIRE TENSIONER SCREW

GU53937200

Back order
£1.98

0
14

SPRING

GU14938050

Back order
£0.29

0
15

TYRE

0000000

more info + more info -

Technical Specifications: Dell'Orto 85220026[D1]

Back order
£0.00

0
16

SCREW

GU14934650

Back order
£1.40

0
19

SPRING

GU17937167

Back order
£1.90

0
24

WIRE TENSIONER SCREW

GU12937200

Back order
£4.24

0
25

NUT

GU12937300

Back order
£0.00

0
26

SCREW

GU13937900

Back order
£0.70

0
27

STARTER DEVICE COVER

GU17937450

Back order
£4.85

0
29

SPRING

GU13937600

Back order
£2.00

0
30

STARTER VALVE

GU13937800

Back order
£10.68

0
32

FLAT WASHER

GU65933700

Back order
£0.32

0
33

SPRING

GU13936300

Back order
£0.85

0
34

SCREW

GU30936210

Back order
£5.29

0
36

FLAT WASHER

GU14931650

Back order
£0.37

0
37

SPRING

GU13936700

Back order
£0.67

0
38

GAS VALVE ADJUSTER SCREW

GU13936600

Discontinued
N/A
43

DIAPHRAGM

GU14931050

Back order
£36.65

0
44

SPRING

GU14936950

Back order
£12.50

0
48

SCREW

GU14936550

Back order
£0.00

0
49

NUT

GU14936450

Back order
£0.40

0
51

WASHER

GU13932900

Back order
£0.26

0
52

INTAKE VALVE

GU14931350

Back order
£13.42

0
54

FUEL FILTER

GU43934000

Back order
£2.08

0
55

FUEL PIPE UNION CAP

GU13934600
Replaced by

FUEL PIPE UNION CAP

AP8106794

Discontinued

17 in stock
N/A

£8.56

0
56

CAP FIXING SCREW

GU10934900

Back order
£0.00

0
59

FLOAT PIN

GU13933100

Back order
£13.77

0
63

CARBURETTOR GASKET SET

GU28939911

Back order
£20.13

0
64

GASKET

GU14115550

Back order
£0.62

0
65

CARBURETTOR LH

GU28115049

Back order
£140.19

0
65

CARBURETTOR RH

GU28115048

Back order
£95.82

0
66

HEX SOCKET SCREW

GU98622325

Back order
£0.76

0
67

CARBURETTOR FLANGE

GU14114350

Back order
£39.98

0
68

HOSE CLAMP 57X59,5X10

GU93305057

Back order
£8.02

0
69

BREATHER PIPE

GU95985351

Back order
£2.21

0
70

SCREW

GU98346010
Replaced by

SCREW

GU98326009

Discontinued

Back order
N/A

£1.60

0
71

WASHER 6,25X10X1,5

GU95100116

Back order
£1.18

0
72

WASHER 6,15X11X0,8

GU95004206
Replaced by

WASHER 6,15X11X0,8

GU95008206

Discontinued

11 in stock
N/A

£1.85

0
73

CARBURETTOR RH

GU28112648

more info + more info -

Technical Specifications: See spare parts comm.n.012 of 2000[01200N], From the frame no. VR111384 (CAT Vers.) [T2]

Back order
£545.74

0
73

CARBURETTOR RH

GU28112610

Back order
£194.15

0
74

CARBURETTOR LH

GU28112649

more info + more info -

Technical Specifications: See spare parts comm.n.012 of 2000[01200N], From the frame no. VR111384 (CAT Vers.)

Back order
£504.71

0
74

CARBURETTOR LH

GU28112611

Back order
£544.32

0
