Aprilia 2010-2013 (APAC, EMEA) Electrical system I (28.34)

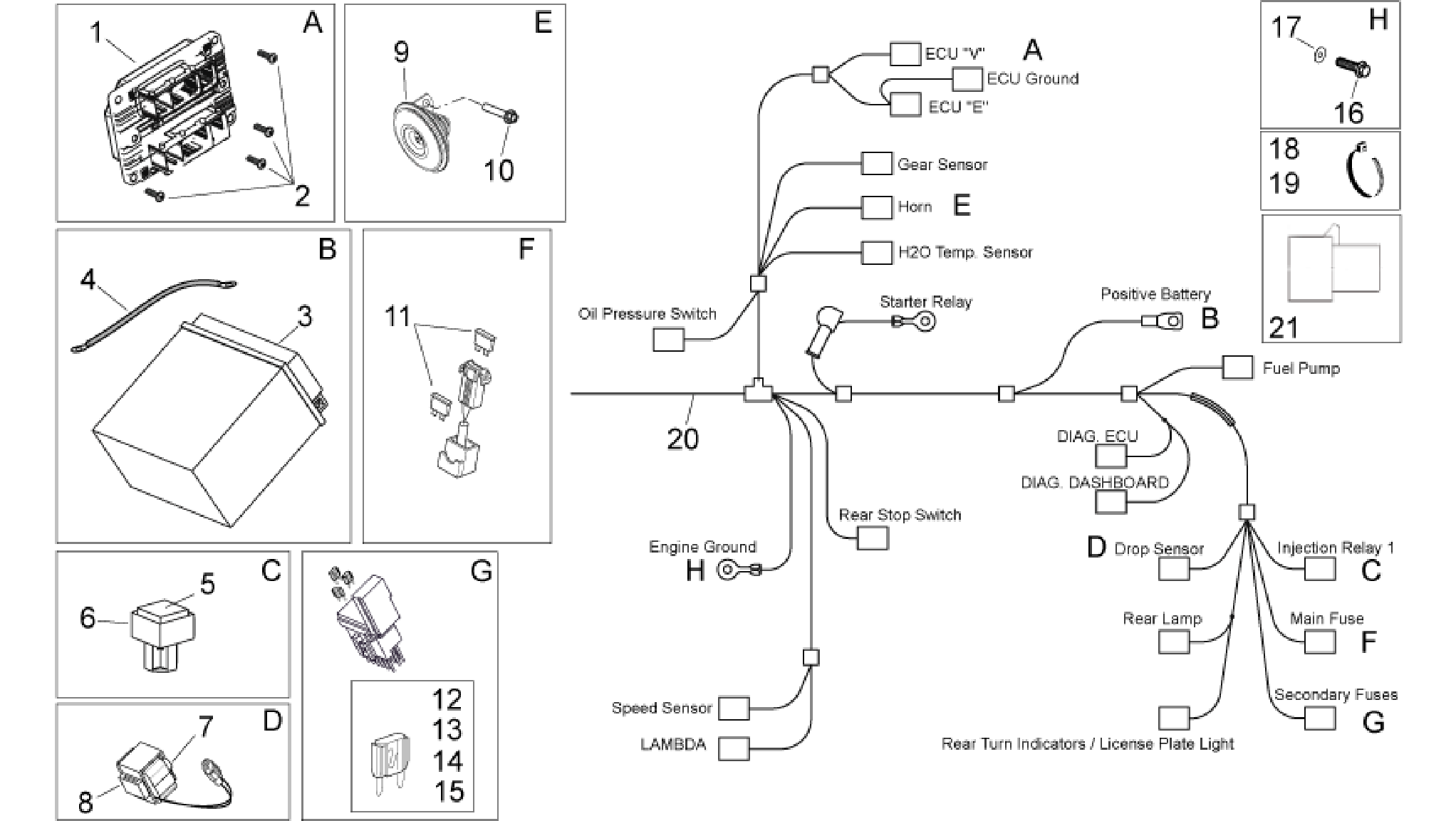

Electrical system I (28.34)
Skip to results list
Position
Part Name
Stock
Price
  • 1
    ECU

    ECU

    640267
    Replaced by

    ELECTRONIC INJECTION DEVICE

    641198
    Discontinued
    1 in stock
    N/A
    £886.32
    0
  • 2
    PHILLIPS SCREW, SWP M5X20

    PHILLIPS SCREW, SWP M5X20

    AP8152329
    11 in stock
    £1.42
    0
  • 3
    BATTERY (YUASA) 12V-10AH

    BATTERY (YUASA) 12V-10AH

    583158
    Back order
    £106.81
    0
  • 3
    BATTERY PTX12-BS 12V-10AH (PIAGGIO)

    BATTERY PTX12-BS 12V-10AH (PIAGGIO)

    1R000318
    Back order
    £77.32
    0
  • 4
    EARTH CABLE

    EARTH CABLE

    851632
    1 in stock
    £22.75
    0
  • 5
    INJECTION RELAY

    INJECTION RELAY

    AP8124869
    Replaced by

    INJECTION RELAY 12V-40W

    895481
    Discontinued
    1 in stock
    N/A
    £15.70
    0
  • 6
    RELAY RUBBER

    RELAY RUBBER

    AP8220546
    9 in stock
    £4.00
    0
  • 7
    FALL SENSOR

    FALL SENSOR

    584509
    Back order
    £78.89
    0
  • 8
    RUBBER SENSOR SUPPORT

    RUBBER SENSOR SUPPORT

    AP8144046
    15 in stock
    £13.77
    0
  • 9
    HORN

    HORN

    854830
    Back order
    £54.01
    0
  • 10
    SCREW W/ FLANGE M6X25

    SCREW W/ FLANGE M6X25

    AP8152280
    113 in stock
    £1.96
    0
  • 11
    FUSE 30A

    FUSE 30A

    496404
    Replaced by

    FUSE 30A

    CM225730
    17 in stock
    93 in stock
    £3.53
    £3.53
    0
    0
  • 12
    REED FUSE 10A

    REED FUSE 10A

    292507
    59 in stock
    £6.85
    0
  • 13
    FUSE 15A

    FUSE 15A

    AP8127345
    Back order
    £1.10
    0
  • 14
    FUSE

    FUSE

    AP8176100
    Back order
    £1.67
    0
  • 15
    FUSE 3A

    FUSE 3A

    AP8127346
    Back order
    £2.66
    0
  • 16
    SCREW W/ FLANGE M6X12

    SCREW W/ FLANGE M6X12

    AP8152277
    9 in stock
    £1.49
    0
  • 17
    SPRING WASHER 6,4X11X0,5*

    SPRING WASHER 6,4X11X0,5*

    AP8150429
    Replaced by

    CURVED SPRING WASHER 6X12

    658830
    Discontinued
    1 in stock
    N/A
    £0.78
    0
  • 18
    HOSE CLAMP 2,5X160

    HOSE CLAMP 2,5X160

    AP8102386
    50 in stock
    £0.14
    0
  • 19
    BLACK HOSE 2.5X99

    BLACK HOSE 2.5X99

    AP8120422
    110 in stock
    £1.17
    0
  • 20
    MAIN WIRING HARNESS

    MAIN WIRING HARNESS

    895809
    Back order
    £1,693.59
    0
  • 20
    MAIN WIRING HARNESS

    MAIN WIRING HARNESS

    895808
    more info + more info -
    Technical Specification: ABS Version[ABS]
    Back order
    £1,404.22
    0
  • 21
    PLUG CONNECTOR

    PLUG CONNECTOR

    582928
    Back order
    £2.52
    0
