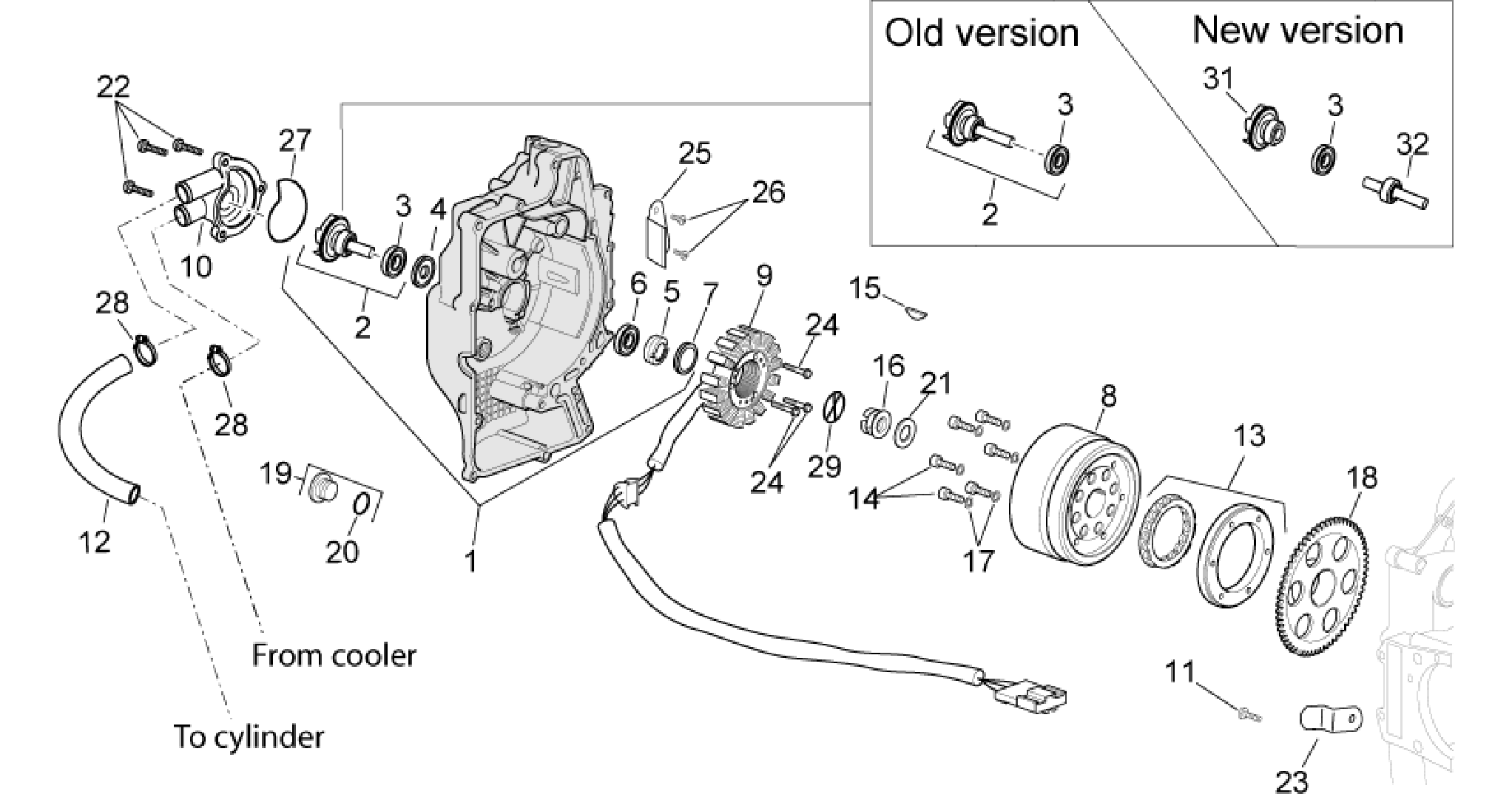

Aprilia 2003-2006 (APAC, EMEA, LATAM) Ignition unit II

Ignition unit II
Skip to results list
Position
Part Name
Stock
Price
  • 1
    FLYWHEEL COVER CPL.

    FLYWHEEL COVER CPL.

    AP8577011
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    FLYWHEEL COVER CPL.

    8483785
    Discontinued
    Back order
    N/A
    £131.40
    0
  • 2
    WATER PUMP SHAFT ASSY.

    WATER PUMP SHAFT ASSY.

    AP8580143
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250] Old version[Old]
    Replaced by

    SHAFT COOLANT PUMP (BV)

    841333
    3 in stock
    2 in stock
    £76.22
    £76.22
    0
    0
  • 3
    GASKET RING

    GASKET RING

    AP8590055
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250] New version[New]
    Replaced by

    OIL SEAL

    82991R
    Discontinued
    4 in stock
    N/A
    £21.45
    0
  • 3
    OIL SEAL

    OIL SEAL

    AP8560018
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250] Old version[Old]
    Replaced by

    SEAL RINGS KIT

    497486
    6 in stock
    2 in stock
    £10.96
    £10.96
    0
    0
  • 4
    INSERT

    INSERT

    AP8560020
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    SEAL RINGS KIT

    497486
    Discontinued
    2 in stock
    N/A
    £10.96
    0
  • 5
    PUMP IMPELLER DRIVE KEY

    PUMP IMPELLER DRIVE KEY

    AP8577014
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    PUMP IMPELLER DRIVE KEY

    842389
    Discontinued
    Back order
    N/A
    £24.55
    0
  • 6
    BEARING 28X8X9

    BEARING 28X8X9

    AP8577012
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    BEARING 28X8X9

    82755R
    Discontinued
    16 in stock
    N/A
    £11.80
    0
  • 7
    GASKET RING

    GASKET RING

    AP8577013
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    OIL SEAL 20X30X5

    82897R
    Discontinued
    1 in stock
    N/A
    £10.18
    0
  • 8
    ROTOR CPL.

    ROTOR CPL.

    AP8577042
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    ROTOR

    58049R
    Discontinued
    Back order
    N/A
    £198.09
    0
  • 9
    STATOR CPL.

    STATOR CPL.

    AP8577045
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    FLYWHEEL MAGN. 250CC

    58048R
    Discontinued
    Back order
    N/A
    £176.78
    0
  • 10
    WATER PUMP COVER

    WATER PUMP COVER

    AP8580094
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    COVER DNA 125/180 HEX. RUN. VX/VXR

    486237
    Discontinued
    Back order
    N/A
    £20.59
    0
  • 11
    SCREW M6X14

    SCREW M6X14

    AP8577048
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    SCREW M6X14

    008375
    Discontinued
    197 in stock
    N/A
    £0.75
    0
  • 12
    PUMP-CYLINDER HOSE

    PUMP-CYLINDER HOSE

    AP8580277
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250] For cast iron cylinder[GH]
    Replaced by

    PUMP-CYLINDER HOSE

    841130
    Discontinued
    Back order
    N/A
    £6.37
    0
  • 12
    WATER PIPE

    WATER PIPE

    AP8577038
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250] For Aluminium cylinder[AL]
    Replaced by

    TUBE

    840468
    Discontinued
    Back order
    N/A
    £9.03
    0
  • 13
    STARTER CLUTCH ASSY.

    STARTER CLUTCH ASSY.

    AP8570014
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    COMPLETE FREEWHEEL

    8494905
    Discontinued
    Back order
    N/A
    £102.21
    0
  • 14
    HEX SOCKET SCREW M6X24

    HEX SOCKET SCREW M6X24

    847679
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    4 in stock
    £1.00
    0
  • 15
    TRANSMISSION KEY

    TRANSMISSION KEY

    AP8560006
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    TRANSMISSION KEY

    000097
    Discontinued
    19 in stock
    N/A
    £4.27
    0
  • 16
    SPECIAL NUT

    SPECIAL NUT

    AP8577043
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    SPECIAL NUT

    82952R
    Discontinued
    1 in stock
    N/A
    £13.78
    0
  • 17
    BREAK WASHER

    BREAK WASHER

    AP8550487
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    SPRING WASHER

    479515
    Discontinued
    94 in stock
    N/A
    £0.84
    0
  • 18
    CHAIN RING

    CHAIN RING

    AP8570018
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    STARTER MOTOR GEAR

    82737R
    Discontinued
    Back order
    N/A
    £60.20
    0
  • 19
    COVER

    COVER

    AP8577015
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    TIMING PLUG ASSEMBLY

    8290405
    Discontinued
    Back order
    N/A
    £13.36
    0
  • 20
    GASKET

    GASKET

    AP8550417
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    O-RING

    479986
    81 in stock
    222 in stock
    £0.42
    £0.42
    0
    0
  • 21
    PLAIN WASHER

    PLAIN WASHER

    AP8577044
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    PLAIN WASHER

    842385
    Discontinued
    Back order
    N/A
    £1.90
    0
  • 22
    SCREW

    SCREW

    AP8551060
    more info + more info -
    Technical Specification: 250 cc version
    Replaced by

    SCREW M5X22

    828662
    53 in stock
    11 in stock
    £1.06
    £1.06
    0
    0
  • 23
    PLATE

    PLATE

    AP8577049
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    RING CONTAINER LAMINATION

    848724
    Discontinued
    Back order
    N/A
    £3.55
    0
  • 24
    SCREW M6X30

    SCREW M6X30

    AP8560011
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Back order
    £1.12
    0
  • 25
    PLATE

    PLATE

    AP8577010
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    PLATE

    841659
    Discontinued
    Back order
    N/A
    £19.37
    0
  • 26
    SCREW

    SCREW

    AP8560009
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    SCREW M5X10

    018575
    Discontinued
    145 in stock
    N/A
    £0.57
    0
  • 27
    O-RING

    O-RING

    AP8580084
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    O-RING

    485080
    1 in stock
    51 in stock
    £1.76
    £1.76
    0
    0
  • 28
    HOSE CLAMP

    HOSE CLAMP

    AP8580217
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    HOSE CLAMP

    CM001908
    Discontinued
    7 in stock
    N/A
    £1.53
    0
  • 29
    DRIVE KEY

    DRIVE KEY

    AP8577037
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250]
    Replaced by

    DRIVE KEY

    842390
    Discontinued
    7 in stock
    N/A
    £2.65
    0
  • 31
    FAN

    FAN

    AP8276091
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250] New version[New]
    Replaced by

    WATER PUMP IMPELLER CPL.

    844730
    Discontinued
    22 in stock
    N/A
    £10.10
    0
  • 32
    WATER PUMP SHAFT ASSY.

    WATER PUMP SHAFT ASSY.

    AP8577096
    more info + more info -
    Technical Specification: 250 cc version (M361M)[250] New
    Replaced by

    WATER PUMP SHAFT ASSY.

    8447595
    Discontinued
    Back order
    N/A
    £45.24
    0
